BPW21R | Vishay
Photodiode Module 565nm 9nA/Ix Sensitivity TO-5
Order No.: 65S1551
MPN:
BPW21R
Unit Price (€ / pc.)
9.1987 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
13,798.05 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
9.1987 €

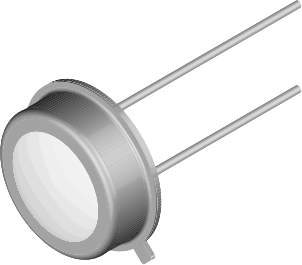

Silicon Photodiode, BPW21R, Vishay
BPW21R is a planar Silicon PN photodiode in a hermetically sealed short TO-5 case, especially designed for high precision linear applications. Due to its extremely high dark resistance, the short circuit photocurrent is linear over seven decades of illumination level. The device is equipped with a flat glass window with built in color correction filter, giving an approximation to the spectral response of the human eye.
Features
- High photo sensitivity
- Adapted to human eye responsivity
- Angle of half sensitivity: ϕ = ± 50°
- Low dark current
- High shunt resistance
- High linearity
Technical specifications
| Power loss | 300 mW | |
| Assembly | THT | |
| Enclosure | TO-5 | |
| Wavelength | 565 nm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C | |
| Radiation angle | 50 ° |
Download
Logistics
| Country of origin | PH |
| Original Packaging | Bag with 500 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
