MKT1822610065 | Vishay
MKT film capacitor, 10 µF, ±20 %, 63 V (DC), PET, 27.5 mm, MKT1822610065
Unit Price (€ / pc.)
7.6636 € *
Available: 5 pcs.
Total Price:
7.66 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6636 €
10 pcs.
6.7354 €
125 pcs.
5.9143 €
250 pcs.
5.6763 €
1000 pcs.
5.3193 €
*incl. VAT plus shipping costs
Subject to prior sale

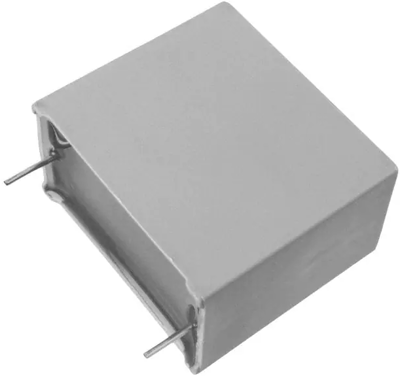

Film capacitor, type Vishay/Roederstein MKT 1822.
Radial, to IEC/EN 60384-2
Rated voltage 63 VDC/40 VAC.

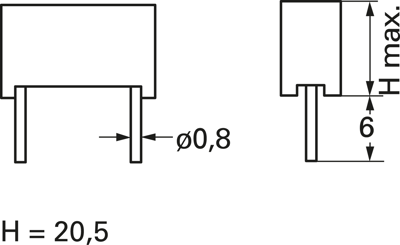

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 27.5 mm | |
| Rated voltage (DC) | 63 V | |
| max. operating temperature | 100 °C | |
| Number of pins | 2 | |
| Rated voltage (AC) | 40 V | |
| Tolerance | ±20 % | |
| Length | 31.5 mm | |
| Capacity | 10 µF | |
| Dielectric material | PET | |
| Height | 20.5 mm | |
| Width | 11.5 mm | |
| min. operating temperature | -55 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PT |
| Original Packaging | Bulk with 125 pieces |
| Customs tariff number | 85322500 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
