MKT1818510065 | Vishay
MKT film capacitor, 1 µF, ±20 %, 63 V (DC), PET, 7.5 mm, MKT1818510065
Unit Price (€ / pc.)
1.5589 € *
Available: 774 pcs.
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5589 €
10 pcs.
1.1067 €
100 pcs.
0.9401 €
500 pcs.
0.8211 €
1000 pcs.
0.7497 €
*incl. VAT plus shipping costs
Subject to prior sale

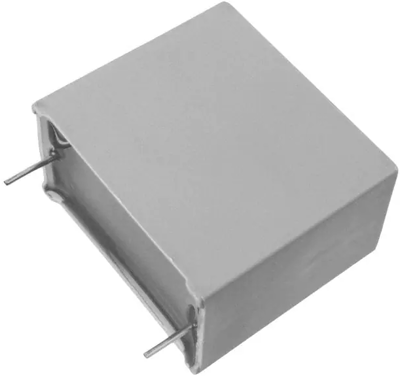

Film capacitor, type Vishay/Roederstein MKT 1818.
Radial, to IEC/EN 60384-2

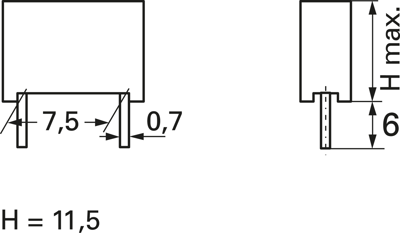

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 40 V | |
| Height | 11.5 mm | |
| Rated voltage (DC) | 63 V | |
| Number of pins | 2 | |
| Capacity | 1 µF | |
| Design | radial | |
| min. operating temperature | -55 °C | |
| Dielectric material | PET | |
| Tolerance | ±20 % | |
| Length | 10.3 mm | |
| Width | 5.7 mm | |
| max. operating temperature | 100 °C | |
| Grid | 7.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Carton with 1,000 pieces |
| Customs tariff number | 85322500 |
| Country of origin | PT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
