MKT1813410256 | Vishay

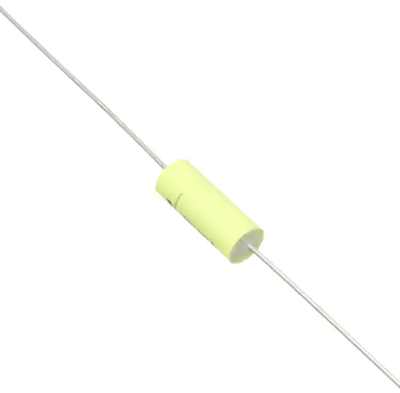

MKT film capacitor, 100 nF, ±20 %, 250 V (DC), PET, MKT1813410256
Unit Price (€ / pc.)
0.7616 € *
Standard delivery time from the manufacturer is: 13 Weeks
DC Film capacitor, MKT1813410256, VISHAY
DC-Link Capacitor
Features
- Polyester film
- Plastic-wrapped, epoxy resin sealed, flame retardant
- Supplied loose in box, taped on ammopack or reel
- Tinned wire
Applications
- Blocking
- Bypassing
- Filtering
- Timing
- Coupling and decoupling circuits
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Rated voltage (AC) | 160 V | |
| Capacity | 100 nF | |
| max. operating temperature | 100 °C | |
| Length | 14 mm | |
| min. operating temperature | -55 °C | |
| Design | axial | |
| Rated voltage (DC) | 250 V | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322900 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
