BFC237075104 | Vishay
MKT film capacitor, 100 nF, ±10 %, 63 V (DC), PET, 5.08 mm, BFC237075104
Unit Price (€ / pc.)
0.7378 € *
Available: 94 pcs.
Total Price:
0.74 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7378 €
10 pcs.
0.4641 €
50 pcs.
0.3808 €
250 pcs.
0.3213 €
1000 pcs.
0.2737 €
*incl. VAT plus shipping costs
Subject to prior sale

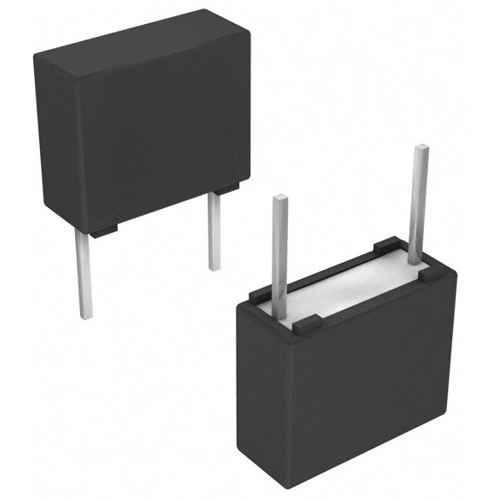

Film capacitor (MKT), type Vishay/BCcomponents MKT 370.
Self-sealing, radial connections
Rated voltage 63 VDC/40 VAC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric material | PET | |
| Rated voltage (AC) | 40 V | |
| Capacity | 100 nF | |
| max. operating temperature | 100 °C | |

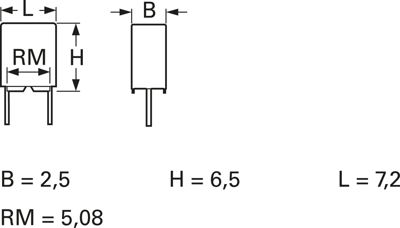

| Length | 7.2 mm | |
| min. operating temperature | -55 °C | |
| Height | 6.5 mm | |
| Width | 2.5 mm | |
| Grid | 5.08 mm | |
| Design | radial | |
| Number of pins | 2 | |
| Rated voltage (DC) | 63 V | |
| Tolerance | ±10 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322500 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
