ZRC00PD2211VTNL | Vishay
Electrolytic capacitor, 220 µF, 35 V (DC), ±20 %, radial, pitch 3.5 mm, Ø 8 mm, ZRC00PD2211VTNL
Unit Price (€ / pc.)
0.1285 € *
Standard delivery time from the manufacturer is: 24 Weeks

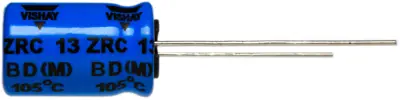

Electrolytic capacitor in aluminum can, type Vishay ZRC.
For vertical mounting, with low ESR
Rated voltage 35 VDC.

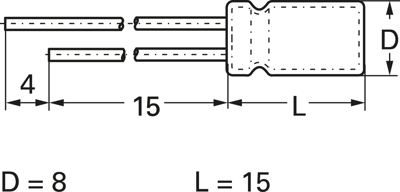

Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 8 mm | |
| Length | 15 mm | |
| Capacity | 220 µF | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Ripple current | 840 mA | |
| Design | radial | |
| Grid | 3.5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
