ZRC00JS4721C00L | Vishay
Electrolytic capacitor, 4700 µF, 16 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 16 mm, ZRC00JS4721C00L
Unit Price (€ / pc.)
1.1424 € *
Available: 1,955 pcs.
Total Price:
1.14 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1424 €
10 pcs.
0.8092 €
100 pcs.
0.6902 €
500 pcs.
0.6069 €
1000 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

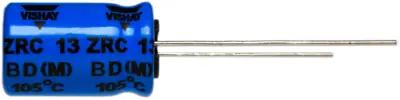

Electrolytic capacitor in aluminum can, type Vishay ZRC.
For vertical mounting, with low ESR
Rated voltage 16 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|

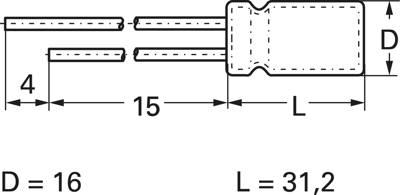

| diameter | 16 mm | |
| Length | 31.5 mm | |
| Capacity | 4700 µF | |
| Rated voltage (DC) | 16 V | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Version | polar | |
| Ripple current | 3.45 A | |
| Design | radial | |
| Grid | 7.5 mm | |
| Tolerance | ±20 % |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
