ZRC00DE1021CTNL | Vishay
Electrolytic capacitor, 1000 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, ZRC00DE1021CTNL
Unit Price (€ / pc.)
0.2344 € *
Available: 0 pcs.
Leadtime: On Request **

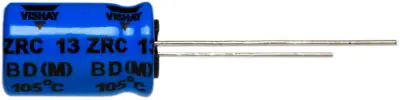

Electrolytic capacitor in aluminum can, type Vishay ZRC.
For vertical mounting, with low ESR
Rated voltage 16 VDC.
Technical specifications
| Version | Polar | |
| Design | radial | |

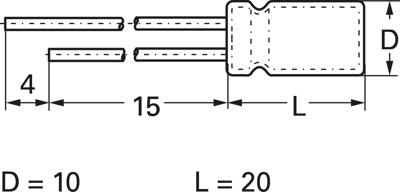

| diameter | 10 mm | |
| Capacity | 1000 µF | |
| Length | 20 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 16 V | |
| Grid | 5 mm | |
| Ripple current | 1.4 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
