MALREKA00FG447D00K | Vishay
Electrolytic capacitor, 4700 µF, 16 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm
Images may differ
Total price
( 1.2138 € * / pcs.)
12.14 €
Available: 1,036 pcs.
Leadtime
Quantity
Price per unit*
10 pcs.
1.2138 €
50 pcs.
1.0710 €
250 pcs.
0.9282 €
900 pcs.
0.8211 €
1800 pcs.
0.7616 €
*incl. VAT plus shipping costs
Description
Electrolytic capacitor, insulated aluminum can, type Vishay/Roederstein EKA.
For vertical mounting, to IEC 60384-4
Rated voltage 16 VDC.
Technical specifications
| Version | polar | |
| Design | radial | |

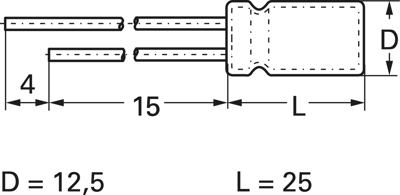

| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 80 mΩ | |
| Capacity | 4700 µF | |
| Length | 25 mm | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (DC) | 16 V | |
| Grid | 5 mm | |
| Ripple current | 2.219 A | |
| Tolerance | ±20 % |
Logistics
| Country of origin | KR |
| Customs tariff number | 85322200 |
| Original Packaging | Bulk with 900 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
