MAL215030102E3 | Vishay
Electrolytic capacitor, 1000 µF, 35 V (DC), ±20 %, radial, Ø 12.5 mm, MAL215030102E3
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: On Request

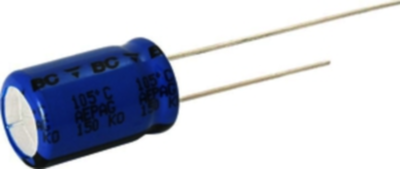

Electrolytic capacitor, MAL215030102E3, VISHAY
Aluminum electrolytic capacitor
Features
- Low ESR
- Rated capacitance 1000 µF
- RoHS-compatible
- Rated voltage 35 V DC
Applications
- Power supplies
- Audio signal
- Automotive
- Smoothing, filtering and buffering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 25 mm | |
| Design | radial | |
| Version | polar | |
| min. operating temperature | -55 °C | |
| diameter | 12.5 mm | |
| Capacity | 1000 µF | |
| max. operating temperature | 105 °C | |
| Ripple current | 1.95 A | |
| Tolerance | ±20 % | |
| Rated voltage (DC) | 35 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Ammopack with 500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
