MAL213659681E3 | Vishay
Electrolytic capacitor, 680 µF, 100 V (DC), ±20 %, radial, pitch 7.5 mm, Ø 18 mm, MAL213659681E3
Order No.: 12D5396
EAN: 4099879870377
MPN:
MAL213659681E3
680uF 100V 20% 105°C P7,5 Alu
Series: 136 RVI
Unit Price (€ / pc.)
3.1535 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

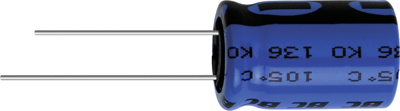

Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.
Very low ESR and excellent AC load capability
Rated voltage 100 VDC.
Technical specifications
| Version | Polar | |
| Design | radial | |

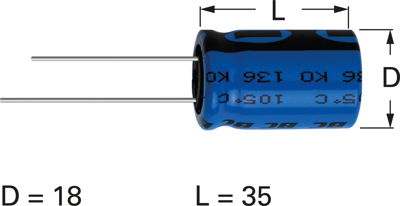

| diameter | 18 mm | |
| ESR (Equivalent Series Resistance) | 39 mΩ | |
| Capacity | 680 µF | |
| Length | 35 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 100 V | |
| Grid | 7.5 mm | |
| Ripple current | 1 A | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Bulk mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
