MAL213658689E3 | Vishay

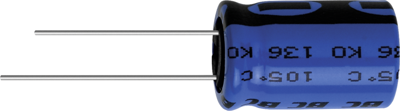

Electrolytic capacitor, 68 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, MAL213658689E3
Unit Price (€ / pc.)
1.2138 € *
Available: 243 pcs.
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2138 €
50 pcs.
1.0710 €
250 pcs.
0.9282 €
1000 pcs.
0.8092 €
2500 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.
Very low ESR and excellent AC load capability
Rated voltage 63 VDC.

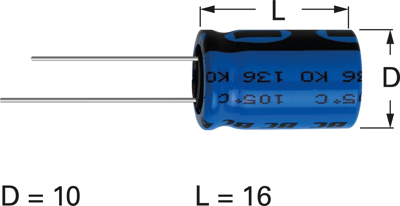

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 210 mΩ | |
| Rated voltage (DC) | 63 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 16 mm | |
| Capacity | 68 µF | |
| min. operating temperature | -55 °C | |
| Ripple current | 182 mA | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
