MAL213658479E3 | Vishay

Electrolytic capacitor, 47 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, MAL213658479E3

Order No.: 12D5371
EAN: 4099879870261
MPN:
MAL213658479E3
Series: 136 RVI

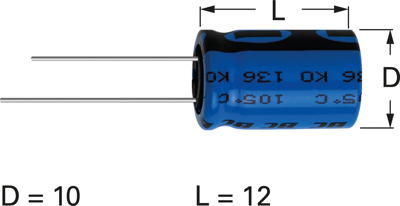

MAL213658479E3 Vishay Electrolytic Capacitors Image 1

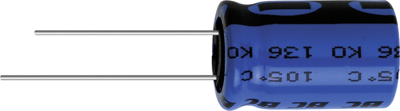

MAL213658479E3 Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.6426 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
1,285.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.6426 €

Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.

Very low ESR and excellent AC load capability

Rated voltage 63 VDC.

Technical specifications
Rated voltage (DC) 63 V
Capacity 47 µF
diameter 10 mm
Grid 5 mm
Length 12 mm
Version polar
Design radial
ESR (Equivalent Series Resistance) 300 mΩ
min. operating temperature -55 °C
Tolerance ±20 %
max. operating temperature 105 °C
Ripple current 133 mA
Logistics
Country of origin AT
Customs tariff number 85322200
Original Packaging Bulk with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
