MAL213658221E3 | Vishay
Electrolytic capacitor, 220 µF, 63 V (DC), ±20 %, radial, pitch 5 mm, Ø 12.5 mm, MAL213658221E3
Order No.: 12D5378
EAN: 4099879870308
MPN:
MAL213658221E3
220uF 63V 20% 105°C P5 Alu
Series: 136 RVI
Unit Price (€ / pc.)
1.8921 € *
Available: 204 pcs.
Leadtime: 8 Weeks **
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
3 pcs.
1.8921 €
15 pcs.
1.6184 €
75 pcs.
1.4042 €
400 pcs.
1.2614 €
800 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay/BCcomponents RVI 136.
Very low ESR and excellent AC load capability
Rated voltage 63 VDC.
Technical specifications
| Version | Polar | |
| Design | radial | |

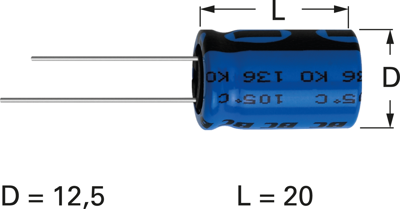

| diameter | 12.5 mm | |
| ESR (Equivalent Series Resistance) | 110 mΩ | |
| Capacity | 220 µF | |
| Length | 20 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated voltage (DC) | 63 V | |
| Grid | 5 mm | |
| Ripple current | 304 mA | |
| Tolerance | ±20 % |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Bulk mit 500 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
