MAL211839109E3 | Vishay

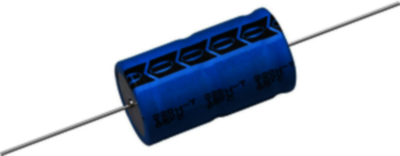

Electrolytic capacitor, 10 µF, 100 V (DC), ±20 %, axial, Ø 6.5 mm, MAL211839109E3
Unit Price (€ / pc.)
1.7493 € *
Standard delivery time from the manufacturer is: 8 Weeks
Electrolytic capacitor, MAL211839109E3, VISHAY
Aluminum electrolytic capacitor - Axial
Features
- Axial leads
- Rated capacitance 10 µF
- RoHS-compatible
- Rated voltage 100 V DC
Applications
- Automotive, industrial and telecommunication
- Smoothing, filtering, coupling, decoupling and timing
- Aerial amplifiers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Ripple current | 52 mA | |
| Rated voltage (DC) | 100 V | |
| Tolerance | ±20 % | |
| Design | axial | |
| diameter | 6.5 mm | |
| ESR (Equivalent Series Resistance) | 11 Ω | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Length | 18 mm | |
| Capacity | 10 µF |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | JP |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
