MAL202136471E3 | Vishay

Electrolytic capacitor, 470 µF, 25 V (DC), -10/+30 %, axial, Ø 10 mm, MAL202136471E3

Order No.: 11D260
EAN: 4099879865694
MPN:
MAL202136471E3
2222 021 36471
Series: 021 ASM

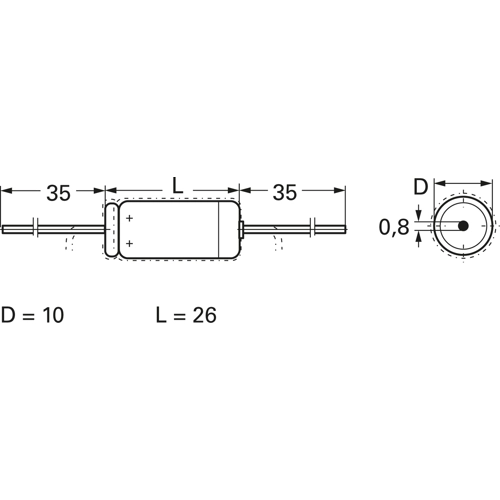

MAL202136471E3 Vishay Electrolytic Capacitors Image 1
MAL202136471E3 Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
2.7846 € *
Next delivery: 423 pcs. on 2025-08-21
Total Price:
2.78 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7846 €
10 pcs.
1.9873 €
25 pcs.
1.7017 €
50 pcs.
1.4756 €
100 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

Electrolytic capacitor, MAL202136471E3, VISHAY

Aluminum electrolytic capacitor - Axial

Features

  • High CV product
  • Charge and discharge proof
  • Axial leads, cylindrical aluminum case, insulated with a blue sleeve

Applications

  • General purpose, industrial, automotive, audio-video
  • Coupling, decoupling, smoothing, filtering, buffering
  • Portable and mobile equipment
  • Low mounting height boards, vibration and shock resistant
Technical specifications
Filter Property Value
max. operating temperature 85 °C
Ripple current 450 mA
min. operating temperature -40 °C
Version polar
Rated voltage (DC) 25 V
Tolerance -10/+30 %
Capacity 470 µF
Length 26 mm
diameter 10 mm
Design axial
ESR (Equivalent Series Resistance) 480 mΩ
Logistics
Property Value
Country of origin AT
Customs tariff number 85322200
Original Packaging Ammopack with 500 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
