MAL202136101E3 | Vishay
Electrolytic capacitor, 100 µF, 25 V (DC), -10/+30 %, axial, Ø 6 mm, MAL202136101E3
Unit Price (€ / pc.)
1.6303 € *
Available: 363 pcs.
Leadtime: On Request **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
10 pcs.
1.1662 €
100 pcs.
0.9996 €
500 pcs.
0.8687 €
1000 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Electrolytic capacitor, MAL202136101E3, VISHAY
Aluminum electrolytic capacitor - Axial
Features
- High CV product
- Charge and discharge proof
- Axial leads, cylindrical aluminum case, insulated with a blue sleeve
Applications
- General purpose, industrial, automotive, audio-video
- Coupling, decoupling, smoothing, filtering, buffering
- Portable and mobile equipment
- Low mounting height boards, vibration and shock resistant
Technical specifications
| Rated voltage (DC) | 25 V | |
| Capacity | 100 µF | |

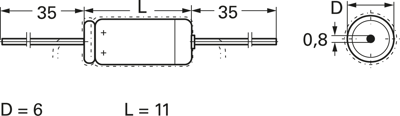

| diameter | 6 mm | |
| Length | 11 mm | |
| Version | polar | |
| Design | axial | |
| ESR (Equivalent Series Resistance) | 2.3 Ω | |
| min. operating temperature | -40 °C | |
| Tolerance | -10/+30 % | |
| max. operating temperature | 85 °C | |
| Ripple current | 150 mA |
Download
Logistics
| Country of origin | AT |
| Customs tariff number | 85322200 |
| Original Packaging | Ammopack with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
