MAL202134471E3 | Vishay

Electrolytic capacitor, 470 µF, 10 V (DC), -10/+30 %, axial, Ø 8.5 mm, MAL202134471E3

Order No.: 11D170
EAN: 4099879865564
MPN:
MAL202134471E3
2222 021 34471
Series: 021 ASM
MAL202134471E3 Vishay Electrolytic Capacitors Image 1
MAL202134471E3 Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2,118.20 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2000 pcs.
1.0591 €

Electrolytic capacitor, MAL202134471E3, VISHAY

Aluminum electrolytic capacitor - Axial

Features

  • High CV product
  • Charge and discharge proof
  • Axial leads, cylindrical aluminum case, insulated with a blue sleeve

Applications

  • General purpose, industrial, automotive, audio-video
  • Coupling, decoupling, smoothing, filtering, buffering
  • Portable and mobile equipment
  • Low mounting height boards, vibration and shock resistant
Technical specifications
Rated voltage (DC) 10 V
Capacity 470 µF

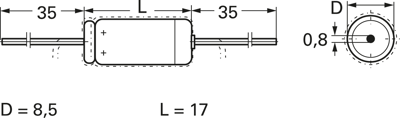

diameter 8.5 mm
Length 17 mm
Version polar
Design axial
ESR (Equivalent Series Resistance) 680 mΩ
min. operating temperature -40 °C
Tolerance -10/+30 %
max. operating temperature 85 °C
Ripple current 310 mA
Logistics
Country of origin AT
Customs tariff number 85322200
Original Packaging Ammopack with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
