MAL202134102E3 | Vishay
Electrolytic capacitor, 1000 µF, 10 V (DC), -10/+30 %, axial, Ø 10 mm, MAL202134102E3
Unit Price (€ / pc.)
1.19 € *
Standard delivery time from the manufacturer is: 10 Weeks
Electrolytic capacitor, MAL202134102E3, VISHAY
Aluminum electrolytic capacitor - Axial
Features
- High CV product
- Charge and discharge proof
- Axial leads, cylindrical aluminum case, insulated with a blue sleeve
Applications
- General purpose, industrial, automotive, audio-video
- Coupling, decoupling, smoothing, filtering, buffering
- Portable and mobile equipment
- Low mounting height boards, vibration and shock resistant
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 10 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |

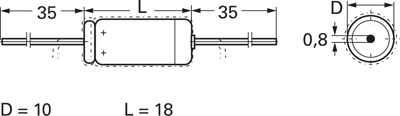

| diameter | 10 mm | |
| ESR (Equivalent Series Resistance) | 320 mΩ | |
| Tolerance | -10/+30 % | |
| Length | 18 mm | |
| Design | axial | |
| Capacity | 1000 µF | |
| Ripple current | 550 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Ammopack with 500 pieces |
| Customs tariff number | 85322200 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
