MAL202118102E3 | Vishay
Electrolytic capacitor, 1000 µF, 63 V (DC), -10/+30 %, axial, Ø 18 mm, MAL202118102E3
Unit Price (€ / pc.)
4.7243 € *
Available: 130 pcs.
Total Price:
4.72 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7243 €
10 pcs.
4.1531 €
120 pcs.
3.6414 €
240 pcs.
3.5105 €
960 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor, insulated aluminum can, type Vishay/BComponents MAL 20.
Axial
Rated voltage 63 VDC.

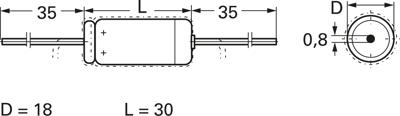

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Capacity | 1000 µF | |
| diameter | 18 mm | |
| max. operating temperature | 85 °C | |
| Length | 30 mm | |
| min. operating temperature | -40 °C | |
| Ripple current | 1.17 A | |
| Design | axial | |
| ESR (Equivalent Series Resistance) | 135 mΩ | |
| Version | polar | |
| Rated voltage (DC) | 63 V | |
| Tolerance | -10/+30 % |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Original Packaging | Bulk with 120 pieces |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
