MAL202115103E3 | Vishay

Electrolytic capacitor, 10000 µF, 16 V (DC), -10/+30 %, axial, Ø 21 mm, MAL202115103E3

Order No.: 11D232
EAN: 4099879865632
MPN:
MAL202115103E3
2222 021 15103
Series: 021 ASM

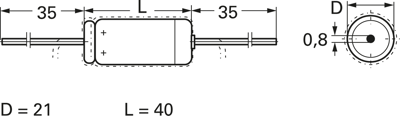

MAL202115103E3 Vishay Electrolytic Capacitors Image 1
MAL202115103E3 Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
3.9627 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
792.54 € *
Price list
Quantity
Price per unit*
200 pcs.
3.9627 €
300 pcs.
3.8437 €
*incl. VAT plus shipping costs
**Subject to prior sale

Electrolytic capacitor, MAL202115103E3, VISHAY

Aluminum electrolytic capacitor - Axial

Features

  • High CV product
  • Charge and discharge proof
  • Axial leads, cylindrical aluminum case, insulated with a blue sleeve

Applications

  • General purpose, industrial, automotive, audio-video
  • Coupling, decoupling, smoothing, filtering, buffering
  • Portable and mobile equipment
  • Low mounting height boards, vibration and shock resistant
Technical specifications
Rated voltage (DC) 16 V
Capacity 10000 µF
diameter 21 mm
Length 40 mm
Version polar
Design axial
ESR (Equivalent Series Resistance) 58 mΩ
min. operating temperature -40 °C
Tolerance -10/+30 %
max. operating temperature 85 °C
Ripple current 2.17 A
Logistics
Country of origin AT
Customs tariff number 85322200
Original Packaging Bulk with 100 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
