GRC00PB3311ETFL | Vishay

Electrolytic capacitor, 330 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 8 mm, GRC00PB3311ETFL

Order No.: 12D4834
EAN: 4099879868794
MPN:
GRC00PB3311ETFL
Series: GRC
GRC00PB3311ETFL Vishay Electrolytic Capacitors Image 1
GRC00PB3311ETFL Vishay Electrolytic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.1154 € *
Available: 306 pcs.
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1154 €
10 pcs.
0.0833 €
100 pcs.
0.0714 €
500 pcs.
0.0619 €
1000 pcs.
0.0559 €
*incl. VAT plus shipping costs
Subject to prior sale

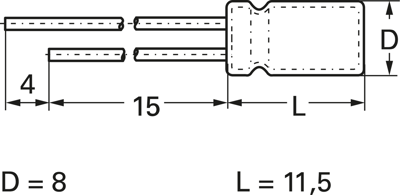

Electrolytic capacitor in aluminum can, type Vishay GRC.

For vertical mounting

Rated voltage 25 VDC.

Technical specifications
Filter Property Value
Rated voltage (DC) 25 V
diameter 8 mm
max. operating temperature 105 °C
Grid 5 mm
Design radial
Tolerance ±20 %
min. operating temperature -40 °C
Capacity 330 µF
Length 11.5 mm
Version polar
Ripple current 310 mA
Logistics
Property Value
Country of origin CN
Customs tariff number 85322200
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
