GRC00PB1011HTFL | Vishay

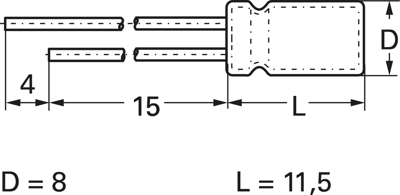

Electrolytic capacitor, 100 µF, 50 V (DC), ±20 %, radial, pitch 5 mm, Ø 8 mm, GRC00PB1011HTFL
Unit Price (€ / pc.)
0.2451 € *
Available: 6,810 pcs.
Total Price:
0.25 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2451 €
10 pcs.
0.1535 €
50 pcs.
0.1095 €
250 pcs.
0.0904 €
1000 pcs.
0.0785 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 50 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tolerance | ±20 % | |
| Capacity | 100 µF | |
| diameter | 8 mm | |
| Rated voltage (DC) | 50 V | |
| Grid | 5 mm | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -40 °C | |
| Version | polar | |
| Design | radial | |
| Ripple current | 188 mA | |
| Length | 11.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
