GRC00DE2221ATNL | Vishay
Electrolytic capacitor, 2200 µF, 10 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, GRC00DE2221ATNL
Unit Price (€ / pc.)
0.2987 € *
Available: 101 pcs.
Total Price:
0.30 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2987 €
10 pcs.
0.2130 €
100 pcs.
0.1821 €
500 pcs.
0.1583 €
1000 pcs.
0.1440 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 10 VDC.

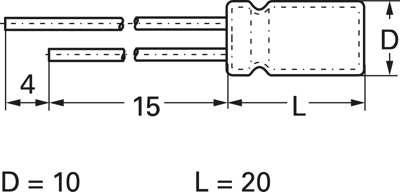

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 10 V | |
| diameter | 10 mm | |
| max. operating temperature | 105 °C | |
| Grid | 5 mm | |
| Design | radial | |
| Tolerance | ±20 % | |
| min. operating temperature | -40 °C | |
| Capacity | 2200 µF | |
| Length | 20 mm | |
| Version | polar | |
| Ripple current | 760 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
