GRC00DE1021ETNL | Vishay
Electrolytic capacitor, 1000 µF, 25 V (DC), ±20 %, radial, pitch 5 mm, Ø 10 mm, GRC00DE1021ETNL
Unit Price (€ / pc.)
0.4879 € *
Available: 261 pcs.
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4879 €
50 pcs.
0.3332 €
250 pcs.
0.2523 €
1000 pcs.
0.2047 €
2000 pcs.
0.1785 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 25 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | polar | |
| Rated voltage (DC) | 25 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 105 °C | |

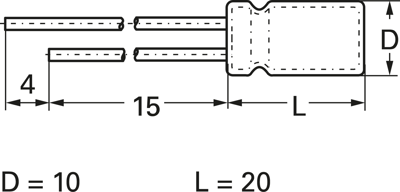

| Grid | 5 mm | |
| diameter | 10 mm | |
| Tolerance | ±20 % | |
| Length | 20 mm | |
| Design | radial | |
| Capacity | 1000 µF | |
| Ripple current | 680 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322200 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
