GRC00BA2211CTNL | Vishay
Electrolytic capacitor, 220 µF, 16 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, GRC00BA2211CTNL
Unit Price (€ / pc.)
0.1297 € *
Available: 530 pcs.
Total Price:
6.49 € *
Price list
Quantity
Price per unit*
50 pcs.
0.1297 €
250 pcs.
0.0893 €
1250 pcs.
0.0678 €
4000 pcs.
0.0536 €
10000 pcs.
0.0476 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 16 VDC.

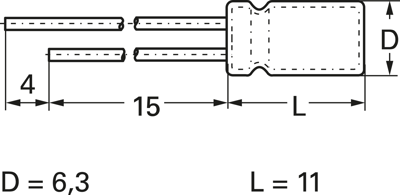

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 16 V | |
| Capacity | 220 µF | |
| diameter | 6.3 mm | |
| Grid | 2.5 mm | |
| Length | 11 mm | |
| Version | polar | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 105 °C | |
| Ripple current | 190 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
