GRC00BA1011VTNL | Vishay

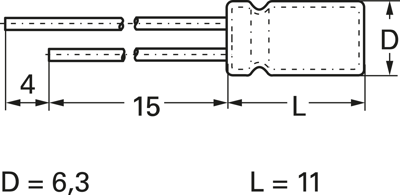

Electrolytic capacitor, 100 µF, 35 V (DC), ±20 %, radial, pitch 2.5 mm, Ø 6.3 mm, GRC00BA1011VTNL
Unit Price (€ / pc.)
0.2213 € *
Available: 800 pcs.
Next delivery: 2,000 pcs. on 2026-04-21
Total Price:
0.22 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2213 €
10 pcs.
0.1928 €
50 pcs.
0.1380 €
250 pcs.
0.0952 €
1250 pcs.
0.0714 €
*incl. VAT plus shipping costs
Subject to prior sale
Electrolytic capacitor in aluminum can, type Vishay GRC.
For vertical mounting
Rated voltage 35 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| diameter | 6.3 mm | |
| Rated voltage (DC) | 35 V | |
| max. operating temperature | 105 °C | |
| Tolerance | ±20 % | |
| Length | 11 mm | |
| Capacity | 100 µF | |
| min. operating temperature | -40 °C | |
| Ripple current | 150 mA | |
| Design | radial | |
| Version | polar |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85322200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
