WKP471MCPEF0KR | Vishay
Ceramic suppression capacitor, 470 pF, 500 V (AC), ±20 %, radial, pitch 12.5 mm, Y5U, WKP471MCPEF0KR
Unit Price (€ / pc.)
0.4165 € *
Available: 1,000 pcs.
Next delivery: 1,000 pcs. on 2025-09-15
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3035 €
100 pcs.
0.2642 €
500 pcs.
0.2249 €
1000 pcs.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety ceramic disk capacitors, type Vishay/Draloric WKP.
With epoxy resin molding (UL 94 V-0)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| Dielectric material | Y5U | |

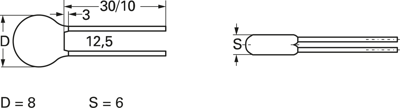

| diameter | 8 mm | |
| Grid | 12.5 mm | |
| Capacity | 470 pF | |
| Rated voltage (AC) | 500 V | |
| Tolerance | ±20 % | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85322300 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
