VY1222M47Y5UG6UL0 | Vishay

Ceramic suppression capacitor, 2.2 nF, 500 V (AC), ±20 %, radial, pitch 10 mm, Y5U, VY1222M47Y5UG6UL0

Order No.: 70D653
EAN: 4099879785107
MPN:
VY1222M47Y5UG6UL0
Series: VY1

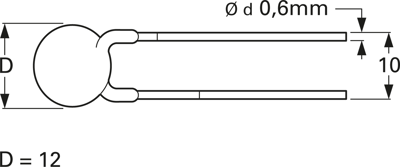

VY1222M47Y5UG6UL0 Vishay Ceramic Capacitors Image 1

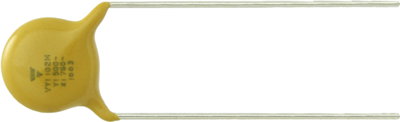

VY1222M47Y5UG6UL0 Vishay Ceramic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
0.4403 € *
Available: 1 pcs.
Total Price:
0.44 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4403 €
10 pcs.
0.4046 €
50 pcs.
0.3023 €
250 pcs.
0.2404 €
1000 pcs.
0.2094 €
2000 pcs.
0.1856 €
*incl. VAT plus shipping costs
Subject to prior sale

EMI suppression ceramic capacitors, type Vishay/BCcomponents VY1.

Halogen-free, with epoxy resin molding

Technical specifications
Filter Property Value
max. operating temperature 125 °C
Dielectric material Y5U
diameter 12 mm
Grid 10 mm
Capacity 2.2 nF
Rated voltage (AC) 500 V
Tolerance ±20 %
min. operating temperature -40 °C
Design radial
Logistics
Property Value
Country of origin CN
Customs tariff number 85413000
Original Packaging Bulk with 750 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
