HGZ101MBPEJ0KR | Vishay
Ceramic capacitor, 100 pF, 8 kV (DC), ±20 %, radial, Y5T, HGZ101MBPEJ0KR
Unit Price (€ / pc.)
2.3681 € *
Available: 3,030 pcs.
Total Price:
2.37 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3681 €
15 pcs.
2.0706 €
75 pcs.
1.7850 €
400 pcs.
1.5589 €
800 pcs.
1.3566 €
*incl. VAT plus shipping costs
Subject to prior sale

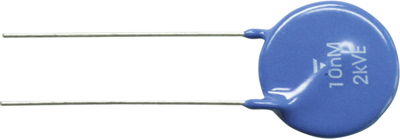

HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 8.0 kVDC, type HGZ.
Technical specifications
| Filter | Property | Value |
|---|---|---|

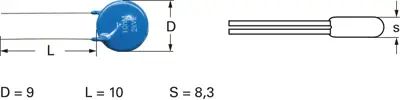

| diameter | 9 mm | |
| Rated voltage (DC) | 8 kV | |
| max. operating temperature | 85 °C | |
| Tolerance | ±20 % | |
| Capacity | 100 pF | |
| Dielectric material | Y5T | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85322300 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
