HFE102MBFEJ0KR | Vishay
Ceramic capacitor, 1 nF, 6 kV (DC), ±20 %, radial, Y5U, HFE102MBFEJ0KR
Discontinued
Unit Price (€ / pc.)
2.1658 € *
Available: 961 pcs.
Total Price:
2.17 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1658 €
10 pcs.
1.7374 €
100 pcs.
1.4637 €
250 pcs.
1.2614 €
1000 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale
HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 6.0 kVDC, type HFE.
Technical specifications
| Filter | Property | Value |
|---|---|---|

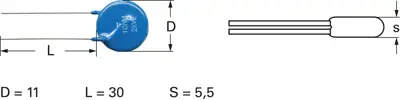

| diameter | 11 mm | |
| Rated voltage (DC) | 6 kV | |
| max. operating temperature | 85 °C | |
| Tolerance | ±20 % | |
| Capacity | 1 nF | |
| Dielectric material | Y5U | |
| min. operating temperature | -40 °C | |
| Design | radial |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85322300 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
