HDE222MBDEF0KR | Vishay

Ceramic capacitor, 2.2 nF, 4 kV (DC), ±20 %, radial, Y5U, HDE222MBDEF0KR

Order No.: 62D196
EAN: 4099879784858
MPN:
HDE222MBDEF0KR
Series: HDE

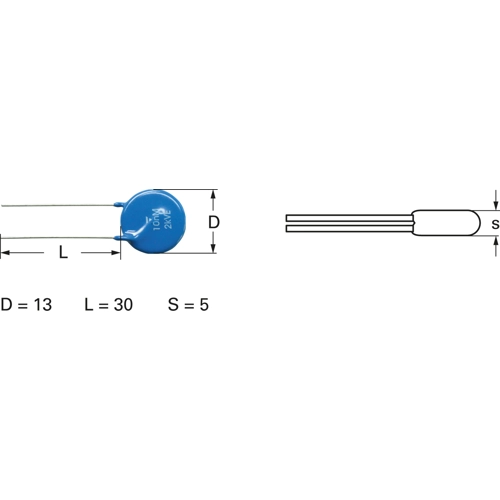

HDE222MBDEF0KR Vishay Ceramic Capacitors Image 1

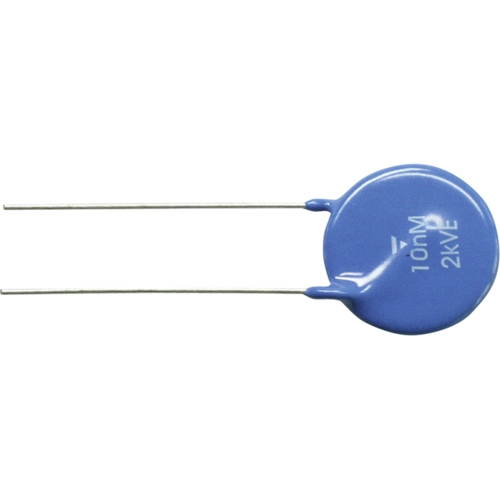

HDE222MBDEF0KR Vishay Ceramic Capacitors Image 2
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available: 1,336 pcs.
Leadtime: 19 Weeks **
Total Price:
1.59 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5946 €
10 pcs.
1.1305 €
100 pcs.
0.9758 €
500 pcs.
0.8449 €
1000 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale

HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.

With epoxy resin molding (insulating and flame retardant)

Rated voltage 4.0 kVDC, type HDE.

Technical specifications
Rated voltage (DC) 4 kV
Dielectric material Y5U
Capacity 2.2 nF
diameter 13 mm
Design radial
min. operating temperature -40 °C
Tolerance ±20 %
max. operating temperature 85 °C
Logistics
Country of origin CZ
Customs tariff number 85322300
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
