HBZ560MBBCF0KR | Vishay
Ceramic capacitor, 56 pF, 2 kV (DC), ±20 %, radial, pitch 7.5 mm, Y5T, HBZ560MBBCF0KR
Unit Price (€ / pc.)
1.5470 € *
Available: 4,281 pcs.
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5470 €
10 pcs.
0.9639 €
50 pcs.
0.8449 €
250 pcs.
0.7378 €
1000 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 2.0 kVDC, type HBZ/HBE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -40 °C | |
| Capacity | 56 pF | |
| Dielectric material | Y5T | |
| Design | radial | |
| Tolerance | ±20 % | |
| Grid | 7.5 mm | |
| Rated voltage (DC) | 2 kV | |
| max. operating temperature | 85 °C | |

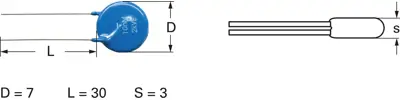

| diameter | 7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85322300 |
| Original Packaging | Bulk with 4,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
