HBE682MBBCF0KR | Vishay
Ceramic capacitor, 6.8 nF, 2 kV (DC), ±20 %, radial, pitch 7.5 mm, Y5U, HBE682MBBCF0KR
Unit Price (€ / pc.)
0.6664 € *
Standard delivery time from the manufacturer is: 16 Weeks

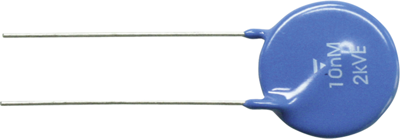

HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 2.0 kVDC, type HBZ/HBE.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.5 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |

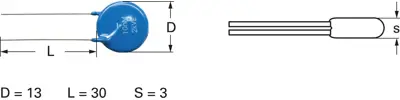

| diameter | 13 mm | |
| Rated voltage (DC) | 2 kV | |
| Tolerance | ±20 % | |
| Capacity | 6.8 nF | |
| Design | radial | |
| Dielectric material | Y5U |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85322300 |
| Country of origin | CZ |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
