HBE103MBBCF0KR | Vishay

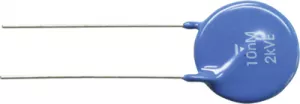

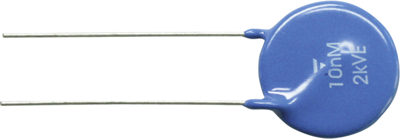

Ceramic capacitor, 10 nF, 2 kV (DC), ±20 %, radial, pitch 7.5 mm, Y5U, HBE103MBBCF0KR
Unit Price (€ / pc.)
3.1654 € *
Available: 1,222 pcs.
Leadtime: On Request **
Total Price:
3.17 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1654 €
10 pcs.
1.9754 €
50 pcs.
1.7255 €
250 pcs.
1.4994 €
1000 pcs.
1.3090 €
*incl. VAT plus shipping costs
**Subject to prior sale
HV ceramic disk capacitors, type Vishay/Draloric HB../HDE/HFE/HGZ.
With epoxy resin molding (insulating and flame retardant)
Rated voltage 2.0 kVDC, type HBZ/HBE.
Technical specifications
| Rated voltage (DC) | 2 kV | |
| Dielectric material | Y5U | |
| Capacity | 10 nF | |

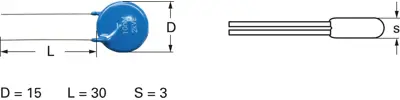

| diameter | 15 mm | |
| Grid | 7.5 mm | |
| Design | radial | |
| min. operating temperature | -40 °C | |
| Tolerance | ±20 % | |
| max. operating temperature | 85 °C |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85322300 |
| Original Packaging | Bulk with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
