BU1506-E3/45 | Vishay

Vishay bridge rectifier, 600 V (RRM), 15 A, SMD-4, BU1506-E3/45

Order No.: 06S1620
EAN: 4099879035998
MPN:
BU1506-E3/45
Series: BU1506
BU1506-E3/45 Vishay Bridge Rectifiers

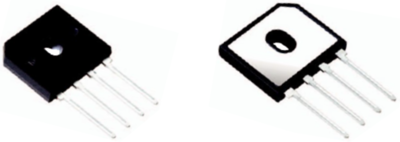

Image may differ
Unit Price (€ / pc.)
4.5577 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
45.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
4.5577 €

Bridge rectifier, BU1506-E3/45, VISHAY

Features

  • Thin single in-line package
  • Glass passivated chip junction
  • Superior thermal conductivity
  • UL recognized

Applications

  • General purpose use in AC/DC bridge full wave rectification for switching power supply
  • Home appliances
  • White-goods applications
Technical specifications
Filter Property Value
Assembly THT
Rated current 15 A
max. operating temperature 150 °C
Version 1-phase
Enclosure SMD-4
Voltage V RRM (peak reverse voltage) 600 V
min. operating temperature -55 °C
Logistics
Property Value
Country of origin CN
Original Packaging Bar with 800 pieces
Customs tariff number 85411000
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
