SL 87 WPM 8 OHM | VISATON
Broadband speaker, 8 Ω, 89 dB, 200 Hz to 5 kHz, black, SL 87 WPM 8 OHM
Order No.: 38M694
EAN: 4007540020884
MPN:
SL 87 WPM 8 OHM
LAUTSPRECHER SL 87 WPM 8 Ohm
Unit Price (€ / pc.)
11.0194 € *
Standard delivery time from the manufacturer is: On Request

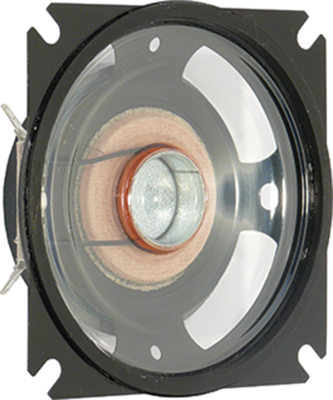

Fullrange speakers, type Visaton SL 87 WPM.

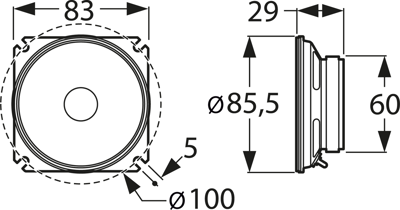

Water-proof, transparent plastic cone and rubber seal, high rated sound pressure level, optimized for speech and signal output; Rated/peak power: 20/30 W. Impedance: 8.0 ohm. Mean sound pressure level: 89 dB. Frequency response: 200 to 5000 Hz. Resonant frequency: 290 Hz. Degree of protection: IP 65. Operating temperatures: –40 to +70 °C. Dimensions: 100 x 29 mm. Weight: 240 g.
Type: 2088, fullrange speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Installation diameter | 60 mm | |
| Resonance frequency | 290 Hz | |
| Sound pressure level | 89 db | |
| Version | broadband speaker | |
| min. transmission range | 200 Hz | |
| Max. transmission range | 5 kHz | |
| Impedance | 8 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
