SC 8 N 8 OHM | VISATON
Broadband speaker, 8 Ω, 81 dB, 70 Hz to 20 kHz, black, SC 8 N 8 OHM
Order No.: 38M700
EAN: 4007540080185
MPN:
SC 8 N 8 OHM
LAUTSPRECHER SC 8 N 8 Ohm
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
23.4787 € *
Standard delivery time from the manufacturer is: 1 Week

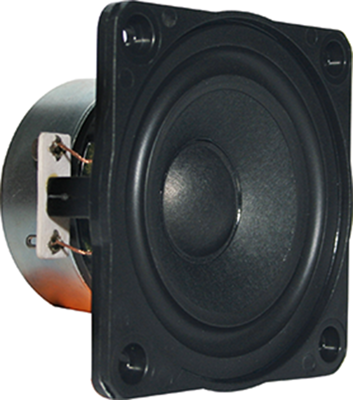

Fullrange speakers, type Visaton SC 8 N.

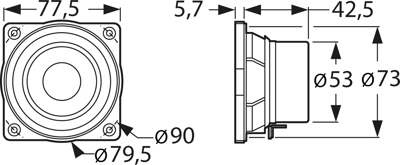

Magnetically shielded, cellulose plastic cone, inverse rubber surround, particularly well balanced frequency response; Rated/peak power: 30/50 W. Impedance: 8.0 ohm. Mean sound pressure level: 81 dB. Frequency response: 70 to 20000 Hz. Resonant frequency: 110 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 79.5 x 48.2 mm. Weight: 280 g.
Type: 8018, fullrange speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | broadband speaker | |
| Impedance | 8 Ω | |
| Sound pressure level | 81 db | |
| min. transmission range | 70 Hz | |
| Max. transmission range | 20 kHz | |
| Installation diameter | 53 mm | |
| Colour | black | |
| Resonance frequency | 110 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85182900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
