KE 25 SC 8 OHM | VISATON

High-end calotte, 8 Ω, 89 dB, 800 Hz to 25 kHz, blue, KE 25 SC 8 OHM

Order No.: 43M130
EAN: 4007540011912
MPN:
KE 25 SC 8 OHM
1191
VISATON
KE 25 SC 8 OHM VISATON Acoustic Signal Transmitters Image 1
KE 25 SC 8 OHM VISATON Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
179.6067 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
179.61 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
179.6067 €

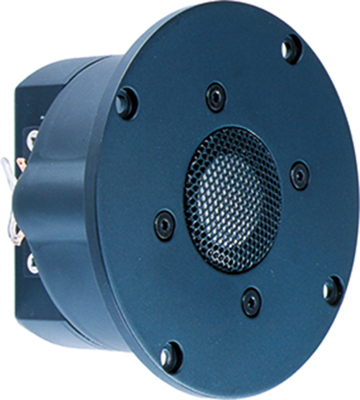

High-end dome tweeters, type Visaton KE 25 SC.

Ceramic dome material for crystal-clear and perfectly reproduced sound without distortion. The pole core perforation with rounded shape for optimized flow, the cavity damping and the ventilated voice coil carrier contribute towards a very low resonant frequency. An integrated R-C-L element linearizes the impedance. The protective grille is fitted with an acoustic low-pass filter in the shape of transparent ring that takes effect starting at 25 kHz and then dampens material-borne resonance

Rated load: 80 W

Peak load: 140 W

Impedance: 8.0 ohm

Frequency response: 800 to 25000 Hz

Mean sound pressure level: 89 dB

Resonant frequency: compensated for

Weight: 980 g

Type: KE 25 SC, high-end dome tweeter

Manufacturer: Visaton

Technical specifications
Version high-end calotte

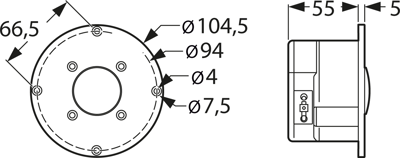

Installation diameter 80 mm
Colour blue
Impedance 8 Ω
Max. transmission range 25 kHz
min. transmission range 800 Hz
Resonance frequency 800 Hz
Sound pressure level 89 db
Logistics
Country of origin CN
Customs tariff number 85182900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
