K40 50 OHM | VISATON

Small speaker, 50 Ω, 83 dB, 350 Hz to 6 kHz, black, K40 50 OHM

Order No.: 38M542
EAN: 4007540028415
MPN:
K40 50 OHM
LAUTSPRECHER K40 50 Ohm
K40 50 OHM VISATON Acoustic Signal Transmitters Image 1
K40 50 OHM VISATON Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
5.2479 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.2479 €

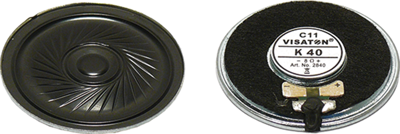

Miniature speakers, type Visaton K 40.

With plastic cone and metal basket; Rated/peak power: 1.0/2.0 W. Mean sound pressure level: 83 dB. Frequency response: 350 to 6000 Hz. Resonant frequency: 520 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 40 x 4.3 mm. Weight: 10 g.

Technical attributes (type, impedance): 2841, 50 ohm

Technical specifications
Colour black

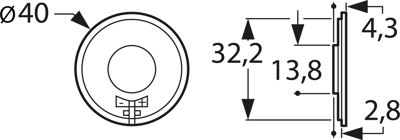

Installation diameter 40 mm
Resonance frequency 520 Hz
Sound pressure level 83 db
Version small speaker
min. transmission range 350 Hz
Max. transmission range 6 kHz
Impedance 50 Ω
Logistics
Country of origin CN
Customs tariff number 85182900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
