K23 SQ 8 OHM | VISATON
Small speaker, 8 Ω, 74 dB, 300 Hz to 19 kHz, black, K23 SQ 8 OHM
Order No.: 38M524
EAN: 4007540028262
MPN:
K23 SQ 8 OHM
LAUTSPRECHER K23 SQ 8 Ohm
Unit Price (€ / pc.)
7.1400 € *
Standard delivery time from the manufacturer is: 1 Week

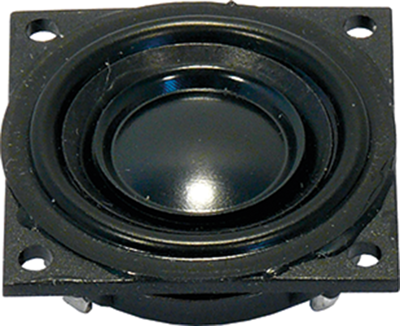

Miniature speakers, type Visaton K 23 SQ.

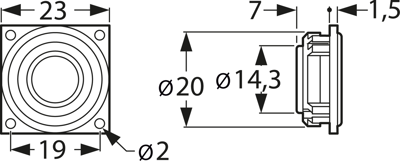

With plastic cone, square plastic basket, for voice and signal output in indoor and outdoor equipment and systems; Rated/peak power: 0.5/1.0 W, impedance; 8.0 ohm. Mean sound pressure level: 74 dB. Frequency response: 300 to 19000 Hz. Resonant frequency: 530 Hz. Degree of protection: IP 64. Dimensions: 23 x 23 x 7.0 mm. Weight: 5.0 g.
Type: 2826, Miniature speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Impedance | 8 Ω | |
| Max. transmission range | 19 kHz | |
| Sound pressure level | 74 db | |
| Resonance frequency | 530 Hz | |
| min. transmission range | 300 Hz | |
| Version | small speaker | |
| Installation diameter | 22.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85182900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
