K 64 WP 8 OHM | VISATON
Broadband speaker, 8 Ω, 86 dB, 200 Hz to 15 kHz, black, K 64 WP 8 OHM
Order No.: 38M660
EAN: 4007540029184
MPN:
K 64 WP 8 OHM
LAUTSPRECHER K 64 WP 8 Ohm
Unit Price (€ / pc.)
7.1876 € *
Available: 0 pcs.
Leadtime: On Request **

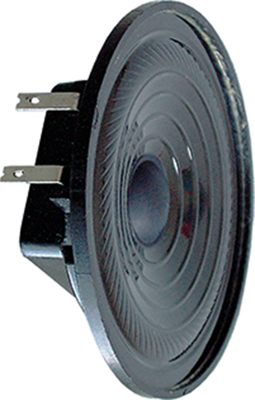

Fullrange speakers, type Visaton K 64 WP.

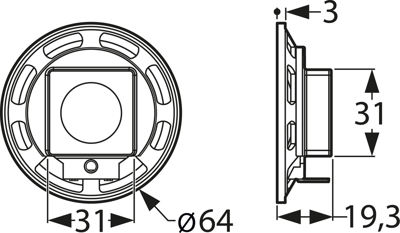

With plastic cone and plastic basket, wide transmission range and good speech intelligibility, suitable for outdoor applications and for use in critical ambient environments. Functionality at cold temperatures to EN 60068-2-1, EN 50155, tab terminals (2.8 x 0.5 mm); Rated/peak power: 2.0/3.0 W. Mean sound pressure level: 86 dB. Frequency response: 200 to 15000 Hz. Resonant frequency: 300 Hz. Degree of protection: IP 65. Operating temperatures: –40 to +80 °C. Dimensions: 64 x 22.3 mm. Weight: 50 g.
Technical attributes (type, impedance): 2918, 8.0 ohm
Technical specifications
| Version | Breitbandlautsprecher | |
| Colour | schwarz | |
| Impedance | 8 Ω | |
| Max. transmission range | 15 kHz | |
| min. transmission range | 200 Hz | |
| Resonance frequency | 300 Hz | |
| Sound pressure level | 86 db |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
