K 57 C 8 OHM | VISATON
Small speaker, 8 Ω, 87 dB, 350 Hz to 6.8 kHz, K 57 C 8 OHM
Order No.: 38M656
EAN: 4007540029078
MPN:
K 57 C 8 OHM
LAUTSPRECHER K 57 C 8 Ohm
Unit Price (€ / pc.)
4.1888 € *
Standard delivery time from the manufacturer is: 1 Week

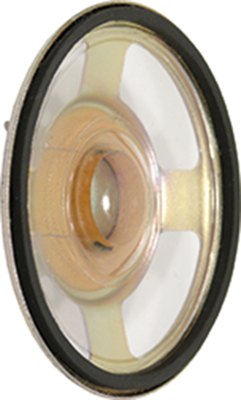

Miniature speakers, type Visaton K 57 C.

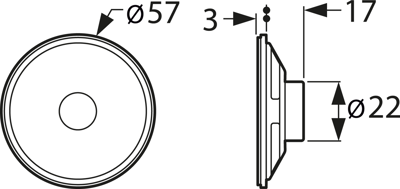

With water-proof, transparent Mylar cone and Neodym magnet; Rated/peak power: 2.0/3.0 W. Impedance: 8.0 ohm. Mean sound pressure level: 87 dB. Frequency response: 350 to 6800 Hz. Resonant frequency: 550 Hz. Degree of protection: IP 65. Operating temperatures: –25 to +70 °C. Dimensions: 57 x 17 mm. Weight: 31 g.
Type: 2907, Miniature speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | small speaker | |
| Impedance | 8 Ω | |
| Sound pressure level | 87 db | |
| min. transmission range | 350 Hz | |
| Max. transmission range | 6.8 kHz | |
| Resonance frequency | 550 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85182900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
