K 50 WP 50 OHM | VISATON
Small speaker, 50 Ω, 84 dB, 180 Hz to 17 kHz, black, K 50 WP 50 OHM
Order No.: 38M584
EAN: 4007540029160
MPN:
K 50 WP 50 OHM
LAUTSPRECHER K 50 WP 50 Ohm
Unit Price (€ / pc.)
6.1523 € *
Standard delivery time from the manufacturer is: 1 Week

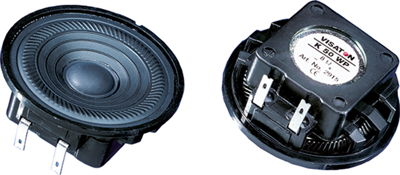

Miniature speakers, type Visaton K 50 WP.

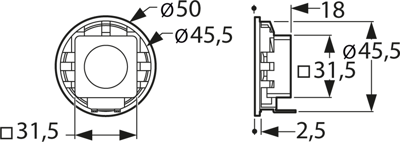

With plastic cone and plastic basket, wide transmission range and good speech intelligibility, suitable for outdoor applications and for use in critical ambient environments. Functionality at cold temperatures to EN 60068-2-1, EN 50155; Rated/peak power: 2.0/3.0 W. Mean sound pressure level: 84 dB. Frequency response: 180 to 17000 Hz. Resonant frequency: 300 Hz. Degree of protection: IP 65. Operating temperatures: –40 to +80 °C. Dimensions: 50 x 18 mm. Weight: 48 g,
Technical attributes (type, impedance): 2916, 50 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 300 Hz | |
| Impedance | 50 Ω | |
| min. transmission range | 180 Hz | |
| Version | small speaker | |
| Sound pressure level | 84 db | |
| Max. transmission range | 17 kHz | |
| Installation diameter | 46 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
