FRWS 5 SC 8 OHM | VISATON
Broadband speaker, 8 Ω, 80 dB, 200 Hz to 20 kHz, black, FRWS 5 SC 8 OHM
Order No.: 38M572
EAN: 4007540022208
MPN:
FRWS 5 SC 8 OHM
LAUTSPRECHER FRWS 5 SC 8 Ohm
Unit Price (€ / pc.)
14.637 € *
Standard delivery time from the manufacturer is: On Request

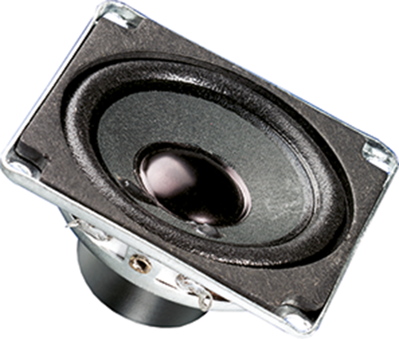

Fullrange speakers, type Visaton FRWS SC.

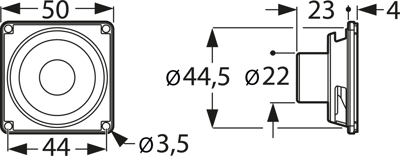

Magnetically shielded, balanced frequency response as of 350 Hz and good omnidirectional sound characteristics; Rated/peak power: 4.0/8.0 W. Impedance: 8.0 ohm. Mean sound pressure level: 80 dB. Frequency response: 200 to 20000 Hz. Resonant frequency: 350 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 50 x 50 x 27 mm. Weight: 52 g.
Type: 2220, fullrange speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Installation diameter | 39 mm | |
| Resonance frequency | 350 Hz | |
| Sound pressure level | 80 db | |
| Version | broadband speaker | |
| min. transmission range | 200 Hz | |
| Max. transmission range | 20 kHz | |
| Impedance | 8 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
