FRW S 5 8 OHM | VISATON
Broadband speaker, 8 Ω, 84 dB, 150 Hz to 20 kHz, black, FRW S 5 8 OHM
Order No.: 38M576
EAN: 4007540022109
MPN:
FRW S 5 8 OHM
LAUTSPRECHER FRW S 5 8 Ohm
Unit Price (€ / pc.)
11.6739 € *
Standard delivery time from the manufacturer is: On Request

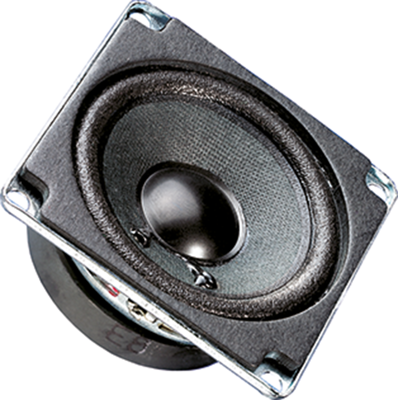

Fullrange speakers, type Visaton FRWS 5.

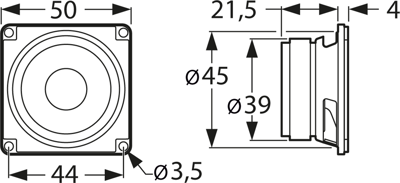

Soft chassis suspension and light-weight special cone, balanced frequency response as of 250 Hz, lively high range response and good omnidirectional sound characteristics, suitable for use as midrange speaker in speaker columns and ELA systems in 100-V technology; Rated/peak power: 4.0/10 W. Mean sound pressure level: 84 dB. Frequency response: 150 to 20000 Hz. Resonant frequency: 250 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 50 x 50 x 25.5 mm. Weight: 100 g.
Technical attributes (type, impedance): 2210, 8.0 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Installation diameter | 39 mm | |
| Resonance frequency | 250 Hz | |
| Sound pressure level | 84 db | |
| Version | broadband speaker | |
| min. transmission range | 150 Hz | |
| Max. transmission range | 20 kHz | |
| Impedance | 8 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
