FRS 5 8 OHM | VISATON
Broadband speaker, 8 Ω, 84 dB, 150 Hz to 20 kHz, black, FRS 5 8 OHM
Order No.: 38M654
EAN: 4007540022314
MPN:
FRS 5 8 OHM
LAUTSPRECHER FRS 5 8 Ohm
Unit Price (€ / pc.)
11.6739 € *
Standard delivery time from the manufacturer is: On Request
Fullrange speakers, type Visaton FRS 5.

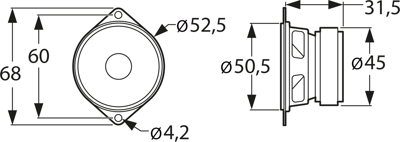

With special basket shape and two straps, suitable for use as midrange speaker; Rated/peak power: 5.0/8.0 W. Impedance: 8.0 ohm. Mean sound pressure level: 84 dB. Frequency response: 150 to 20000 Hz. Resonant frequency: 270 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 68 x 31.5 mm. Weight: 126 g.
Type: 2231, fullrange speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Installation diameter | 52.5 mm | |
| Resonance frequency | 270 Hz | |
| Sound pressure level | 84 db | |
| Version | broadband speaker | |
| min. transmission range | 150 Hz | |
| Max. transmission range | 20 kHz | |
| Impedance | 8 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
