FR 7 4 OHM | VISATON

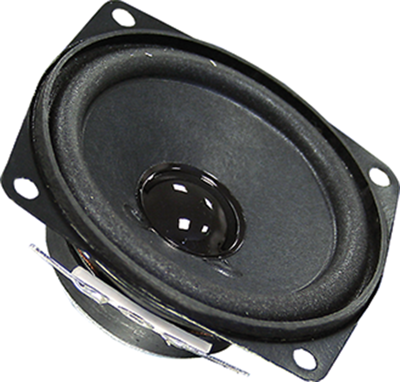

Broadband speaker, 4 Ω, 86 dB, 130 Hz to 20 kHz, black, FR 7 4 OHM
Order No.: 38M664
EAN: 4007540020150
MPN:
FR 7 4 OHM
LAUTSPRECHER FR 7 4 Ohm
Unit Price (€ / pc.)
5.2717 € *
Standard delivery time from the manufacturer is: On Request
Fullrange speakers, type Visaton FR 7.

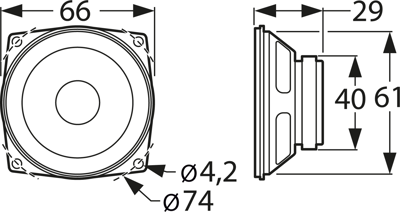

Small magnet, balanced frequency response, good sound pressure level, excellent high-range response; Rated/peak power: 5.0/10 W. Impedance: 4.0 ohm. Mean sound pressure level: 86 dB. Frequency response: 130 to 20000 Hz. Resonant frequency: 220 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 66 x 66 x 29 mm. Weight: 92 g.
Type: 2015, fullrange speaker
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Installation diameter | 61 mm | |
| Resonance frequency | 220 Hz | |
| Sound pressure level | 86 db | |
| Version | broadband speaker | |
| min. transmission range | 130 Hz | |
| Max. transmission range | 20 kHz | |
| Impedance | 4 Ω |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85182900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
