FR 16 WP 4 OHM | VISATON

Broadband speaker, 4 Ω, 86 dB, 60 Hz to 15 kHz, white, FR 16 WP 4 OHM

Order No.: 38M804
EAN: 4007540021164
MPN:
FR 16 WP 4 OHM
LAUTSPRECHER FR 16 WP 4 Ohm

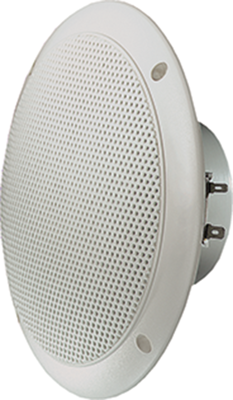

FR 16 WP 4 OHM VISATON Acoustic Signal Transmitters Image 1
FR 16 WP 4 OHM VISATON Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
26.537 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
26.537 €

Fullrange speakers, type Visaton FR 16 WP.

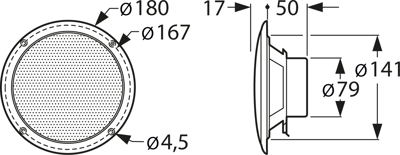

Salt water resistant, molded plastic cone, plastic basket and plastic grille, clear high-range output, for outdoor systems, solar plants, wet rooms, boats, ships and open vehicles; Rated/peak power: 60/80 W. Impedance: 4.0 ohm. Mean sound pressure level: 86 dB. Frequency response: 60 to 15,000 Hz. Resonant frequency: 85 Hz. Degree of protection: IP 65. Operating temperatures: –40 to +80 °C. Dimensions: 180 x 67 mm. Weight: 420 g.

Type: 2116, fullrange speaker

Technical specifications
Colour white
Installation diameter 142 mm
Resonance frequency 85 Hz
Sound pressure level 86 db
Version broadband speaker
min. transmission range 60 Hz
Max. transmission range 15 kHz
Impedance 4 Ω
Logistics
Country of origin TW
Customs tariff number 85182900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
