BF32 8 OHM | VISATON

Broadband speaker, 8 Ω, 78 dB, 150 Hz to 20 kHz, black/white, BF32 8 OHM

Order No.: 38M530
EAN: 4007540022420
MPN:
BF32 8 OHM
LAUTSPRECHER BF32 8 Ohm

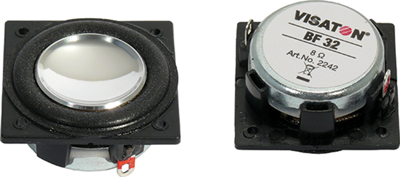

BF32 8 OHM VISATON Acoustic Signal Transmitters Image 1
BF32 8 OHM VISATON Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
10.8052 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
10.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.8052 €

Fullrange speakers, type Visaton BF 32.

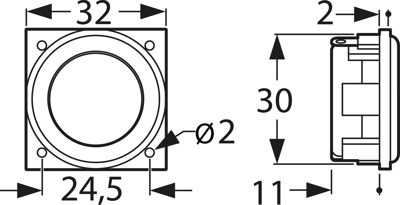

With wide, balanced frequency response and excellent low range output, strong Neodym drive; Rated/peak power: 2.0/5.0 W, impedance; 8.0 ohm. Mean sound pressure level: 78 dB. Frequency response: 150 to 20000 Hz. Resonant frequency: 220 Hz. Operating temperatures: –25 to +70 °C. Dimensions: 32 x 32 x 13 mm. Weight: 28 g.

Type: 2242, fullrange speaker

Technical specifications
Colour black/white
Installation diameter 30 mm
Resonance frequency 220 Hz
Sound pressure level 78 db
Version broadband speaker
min. transmission range 150 Hz
Max. transmission range 20 kHz
Impedance 8 Ω
Logistics
Country of origin CN
Customs tariff number 85182900
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
